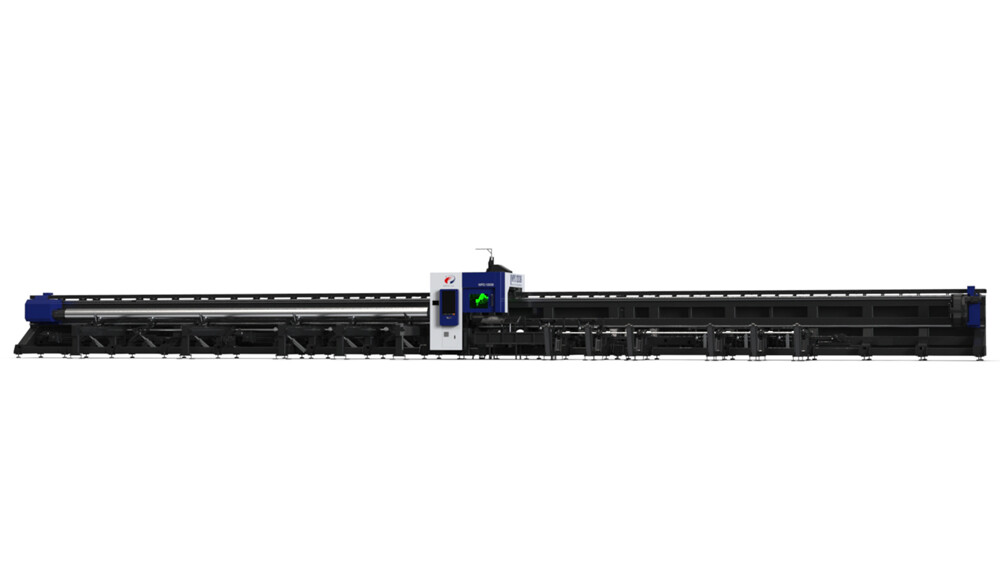

WPC

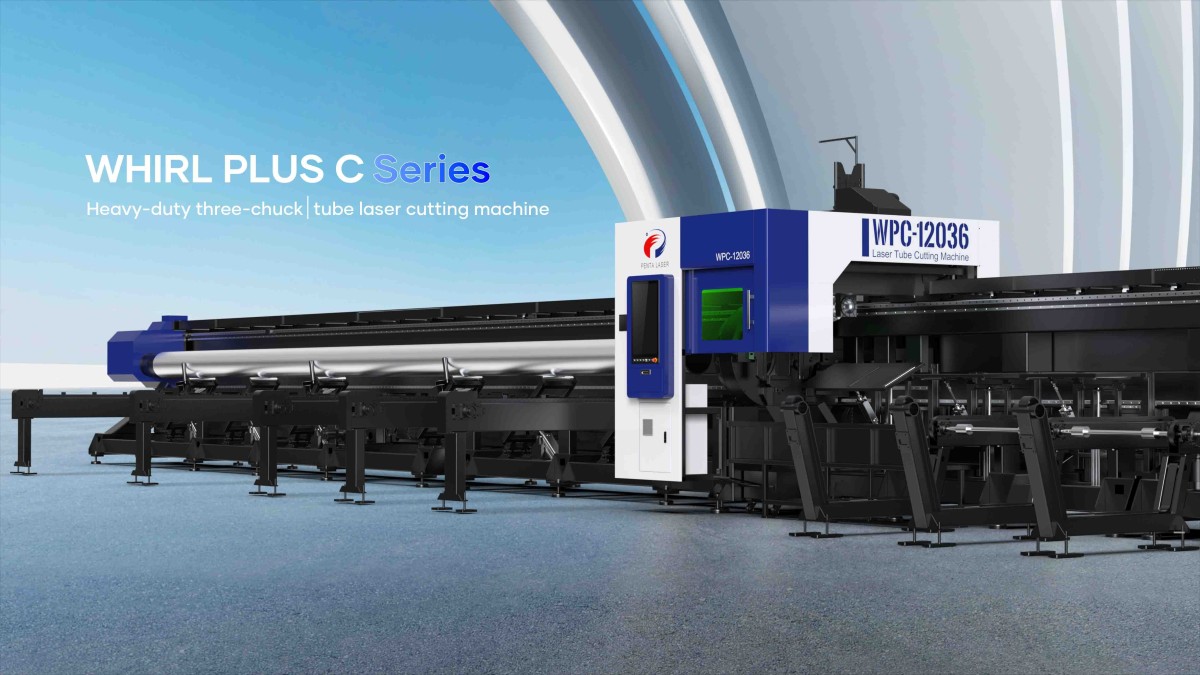

The WPC series laser tube cutting machine is designed for cutting heavy-duty tubes. It adopts a customized large mouth and high load-bearing side-hanging chuck, with a maximum load capacity of 1.2 tons. The machine is equipped with a standard semi-automatic loading system. And the loading support is equipped with a large clamping force fixture to ensure the centering of the tube loading. The loading side is supported by a servo-controlled floating supporter, and the unloading side is supported by a servo-controlled flat floating supporter. The bevel cutting function is optional.
Contact Us
Product Display
Product Parameters
Video Showcase
Downloads

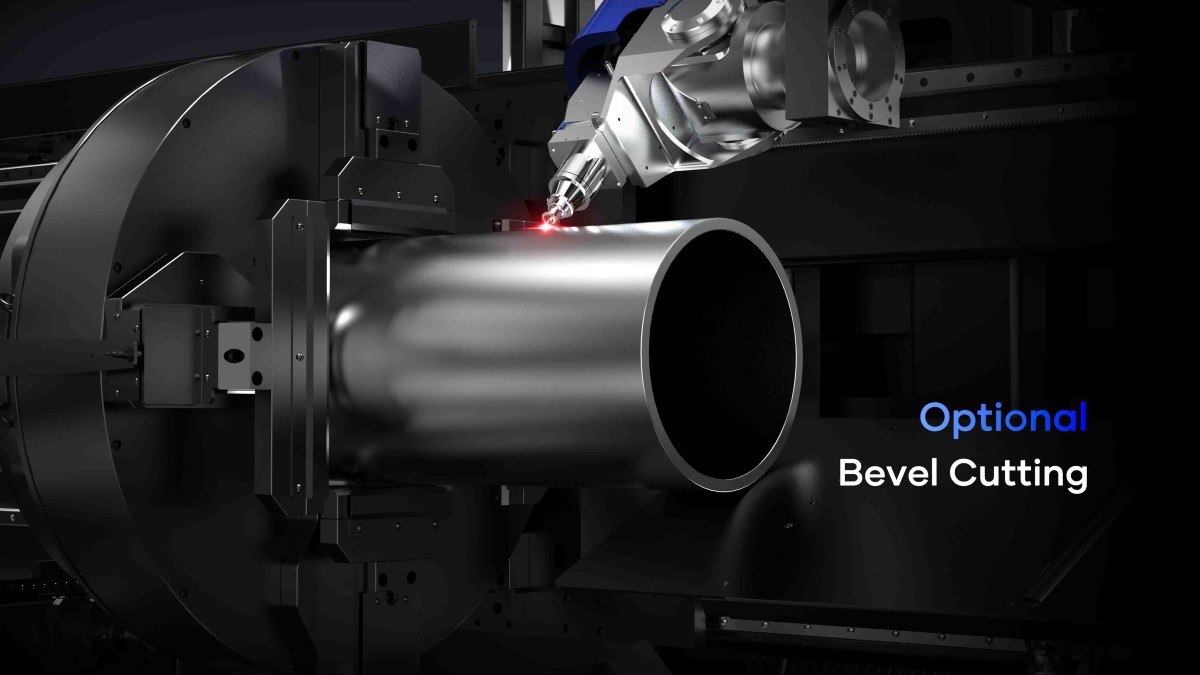

2.坡口切割 拷贝.jpg

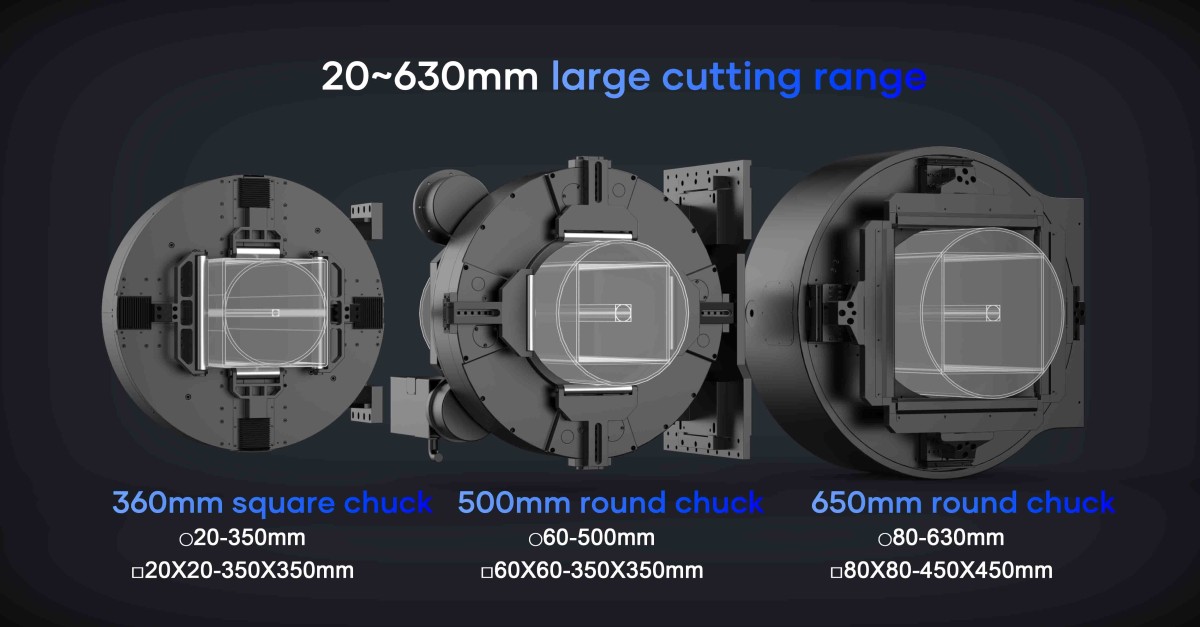

3.卡盘 拷贝.jpg

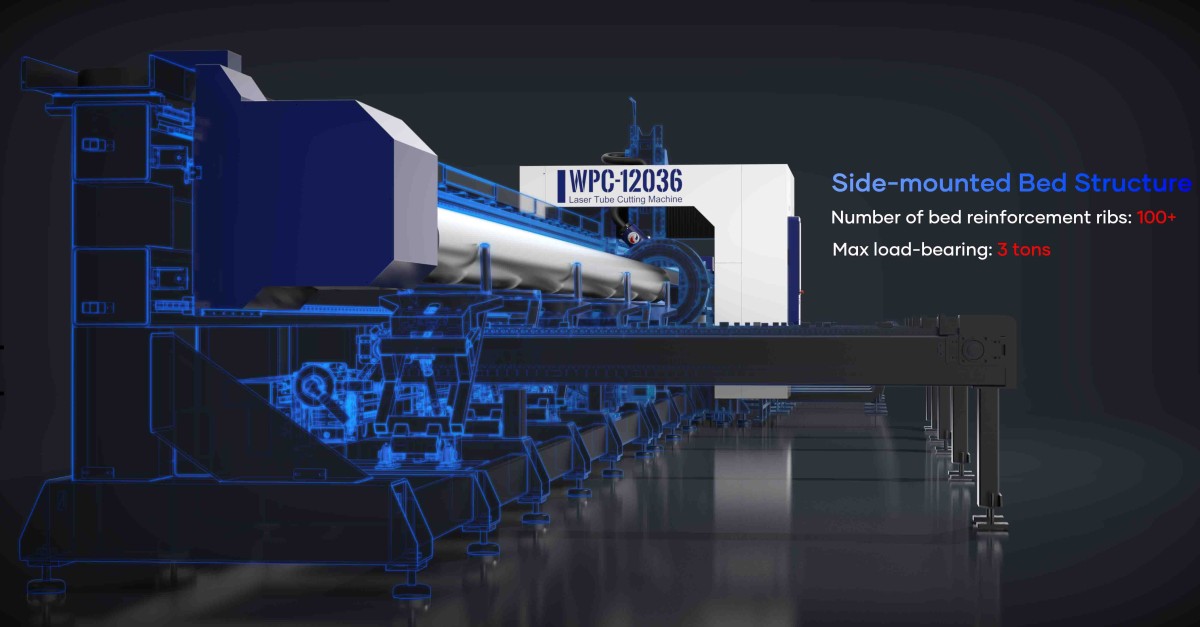

4.侧挂式床身结构 拷贝.jpg

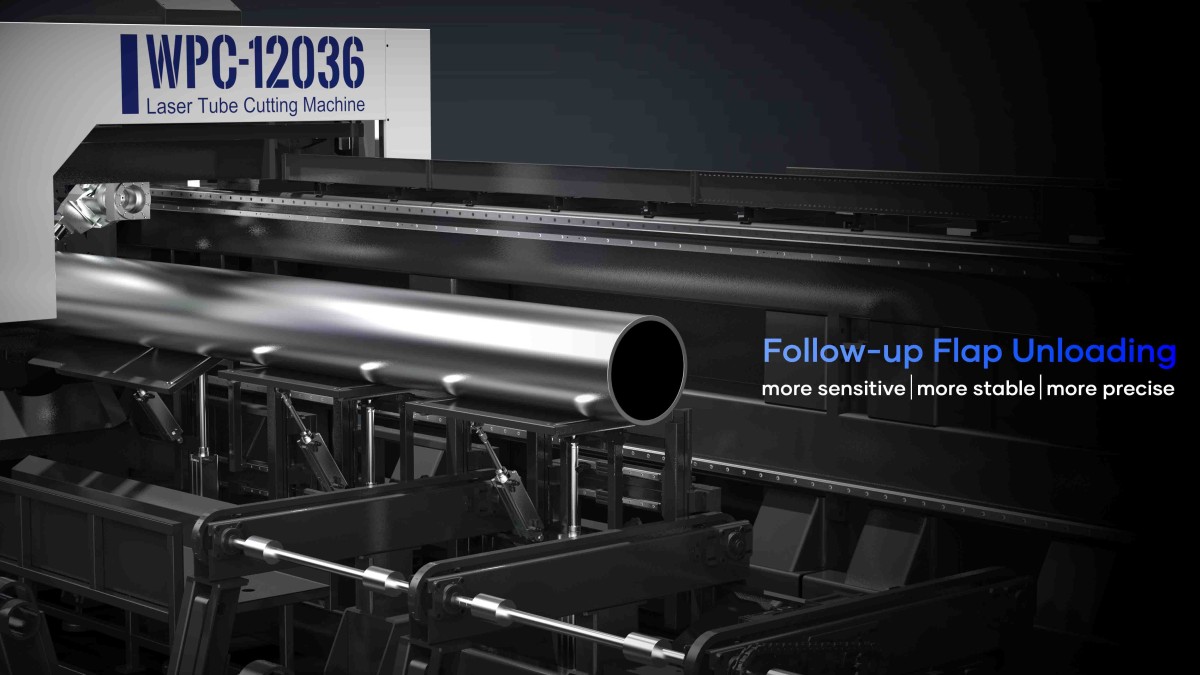

5.随动翻板落料机构 拷贝.jpg

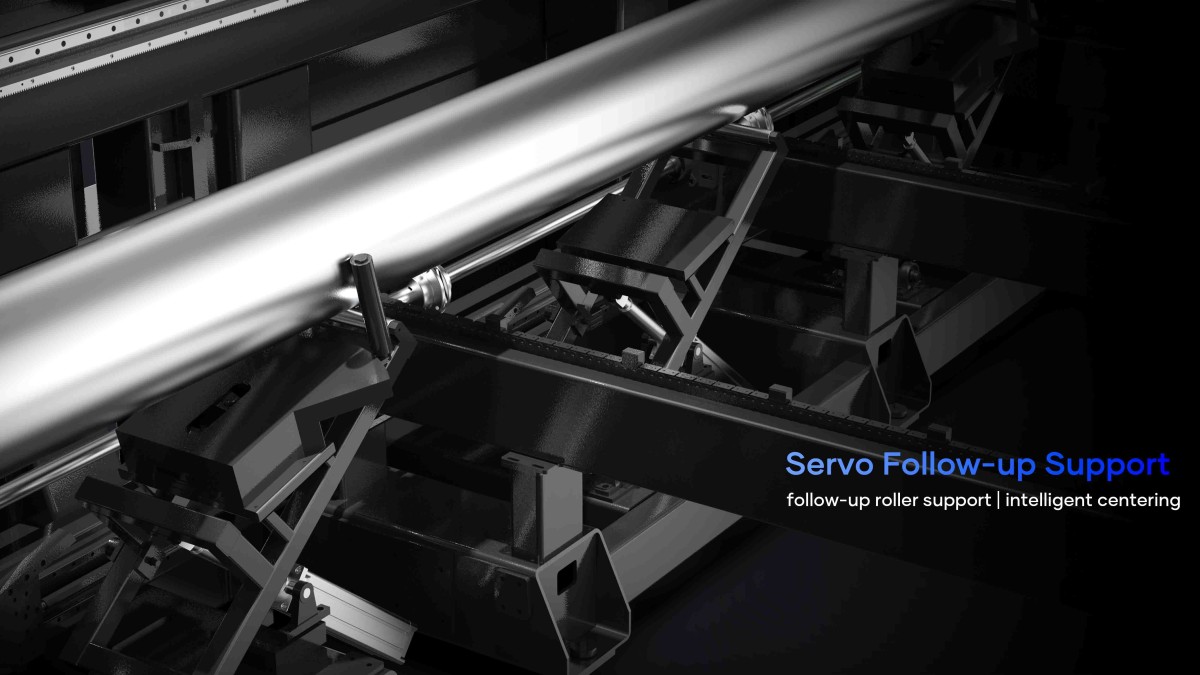

6.随动伺服支撑 拷贝.jpg

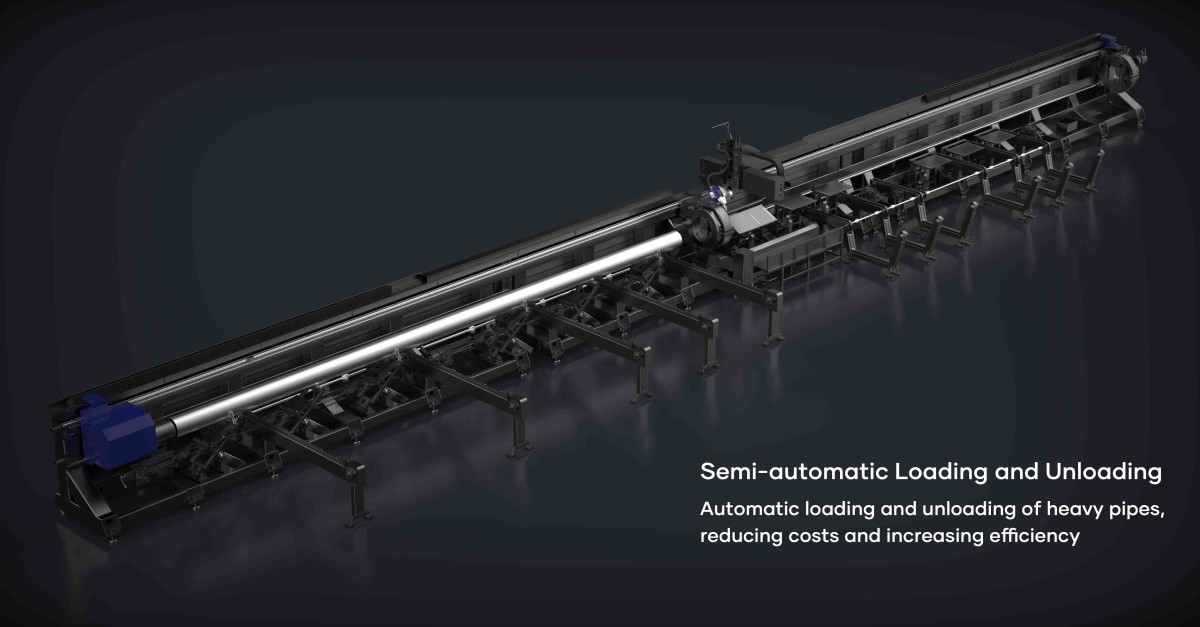

7.半自动上下料机构 拷贝.jpg

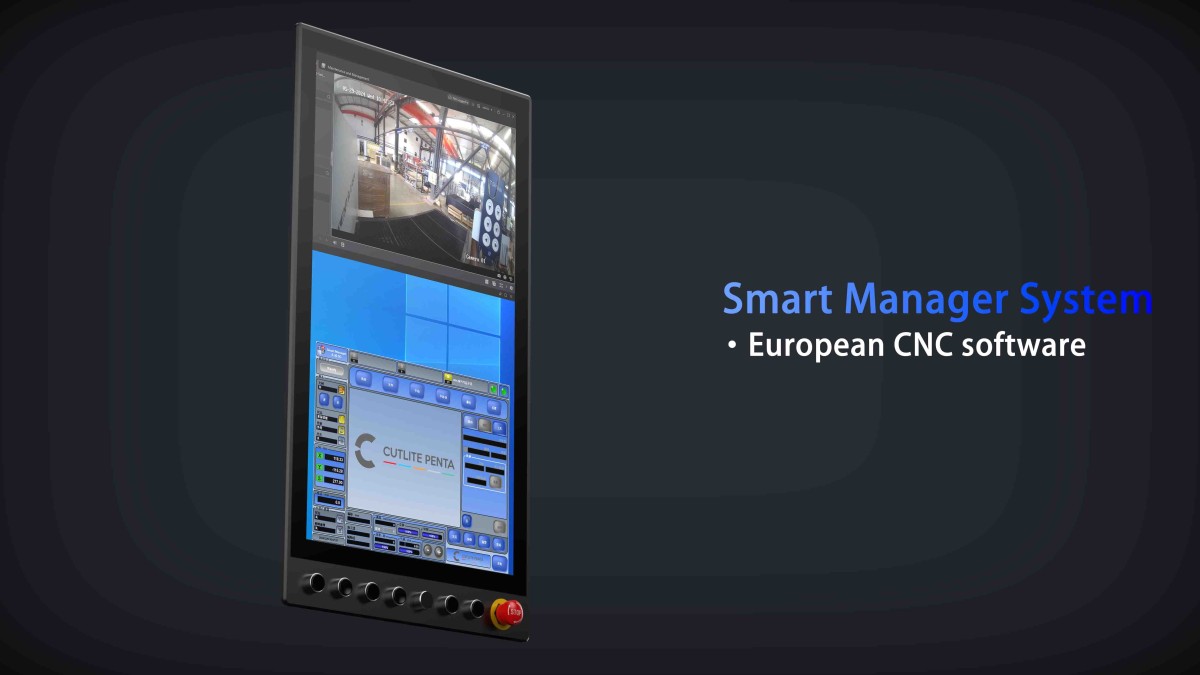

8.SM系统.bip.305 拷贝.jpg

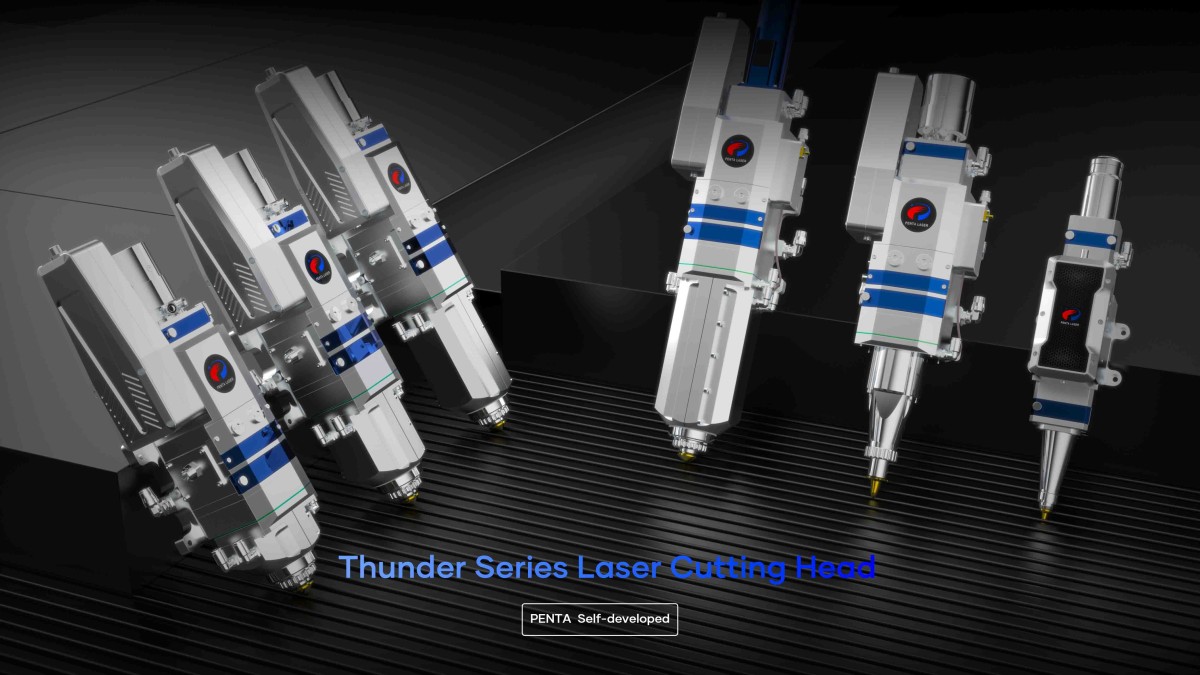

9.激光头 拷贝.jpg


 specifications
ModelWPC12036WPC12050WPC12065
Maximum Loading Length12m12m12m
Mechanical Repeatability0.03mm0.03mm0.03mm
Rapid Speed72m/min45m/min45m/min
Rotational Axis Repeated Positioning Accuracy8′8′8′
Rotational Axis Maximum Speed75rpm45rpm45rpm
Tube Diameter Range○φ20-350   □20X20-350X350○φ60-500   □60X60-350X350○φ80-630   □80X80-450X450
Maximum Weight of a Single Tube1200kg2400kg2400kg
Unloading Working Table6m unloading table + conveyor chain (9m/12m optional)
Automatic LoadingSemi-automatic loading
Laser Source OptionIPG/RAYCUS/MAX (Optional)
